The Engineering Physics of Torsion Counterbalance Systems
A residential garage door weighs anywhere from 130 pounds for an uninsulated single-layer pan door to over 380 pounds for a triple-layer insulated carriage door with wind-load hurricane struts. Automatic garage door openers are only engineered to push and pull approximately 10 to 15 pounds of deadweight; they are not cranes. The entire mechanical lifting force is generated by the torsion counterbalance assembly mounted on the header above the opening.
The torsion system stores massive mechanical potential energy by tightly coiling high-carbon steel wire around a hollow steel or solid keyed shaft. When the door is closed, the spring is wound to its maximum tension—typically 7.5 to 8 full turns (30 to 32 quarter-turns on standard 7-foot doors). As the door opens, this stored rotational energy unwinds through the shaft and cable drums, pulling aircraft-grade cables and neutralizing the deadweight of the door panels across the horizontal radius tracks.
DASMA Engineering Formula: Calculating Spring Torque (IPPT)
Under Door & Access Systems Manufacturers Association (DASMA) technical guidelines, torsion springs are engineered based on Inch-Pounds Per Turn (IPPT). The required spring torque must perfectly match the door's total deadweight divided by the drum moment arm:
Required IPPT = (Total Door Weight in Pounds × Drum Moment Arm Radius) ÷ Maximum Winding Turns
Installing an incorrect wire gauge or length throws this torque equation out of balance, either causing the door to slam shut (under-sprung) or fly open dangerously and strip the motor gears (over-sprung).
Why Do Overhead Torsion Springs Suddenly Shear & Snap?
Every time your garage door cycles open and closed, the steel spring wire experiences high-tension elastic deformation. Torsion springs do not fail because of age or rust alone; they fail due to cyclical metal fatigue. Standard builder-grade springs installed by mass homebuilders are rated for a baseline 10,000 cycles. For an active American household cycling the garage 4 times per day (morning commute, afternoon school run, grocery trip, evening return), a 10,000-cycle spring has an operational lifespan of only 6 to 7 years.

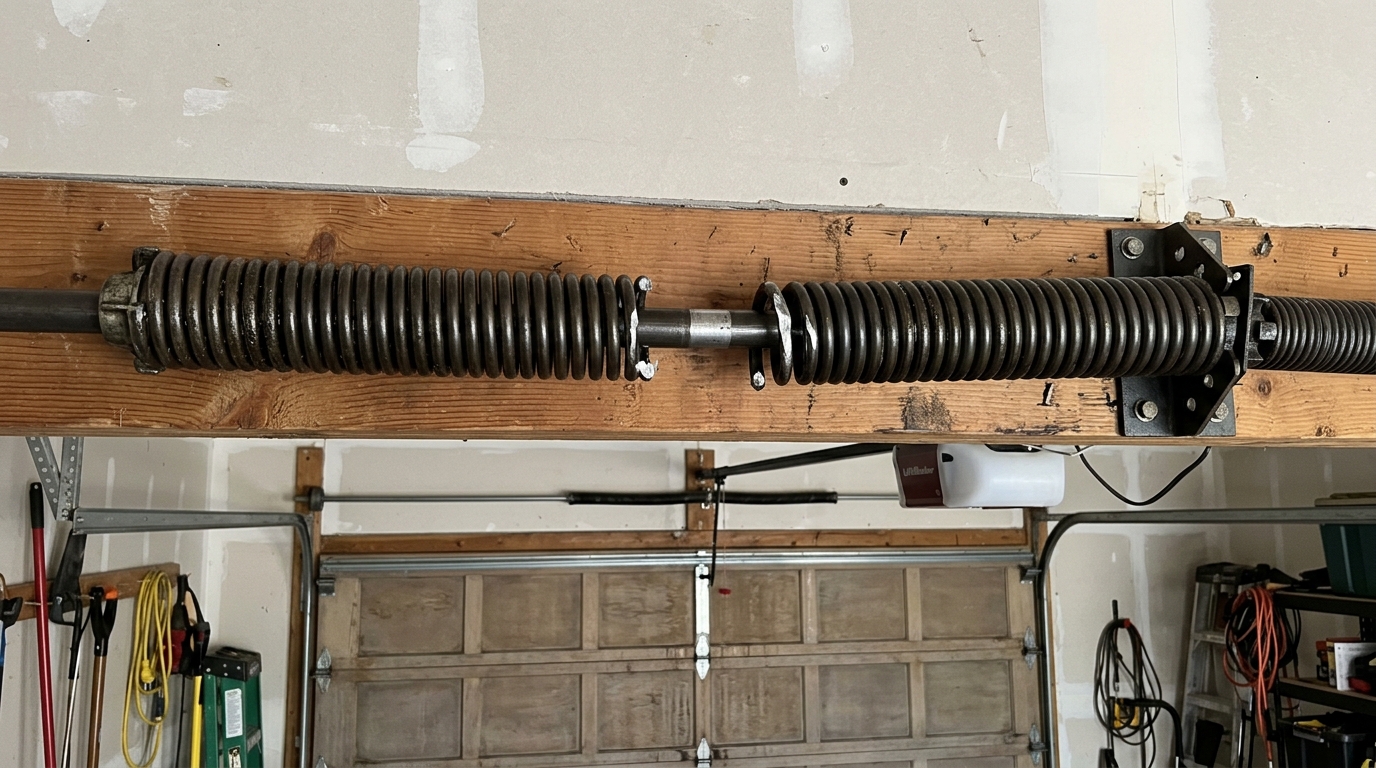

As the steel coils approach their cycle threshold, microscopic shear fractures develop along the inner diameter where rotational tension concentrates. Eventually, during an early morning cycle when cool ambient temperatures cause the high-carbon steel to contract, a violent shear fracture rips through the wire with a deafening bang, instantly releasing all stored torque.
National Counterbalance Specification & Architecture
DASMA 20-Coil Wire Gauge Reference Table
Accurate spring replacement requires precision micrometric measurement. Professional technicians never guess the wire size or eyeball the diameter. We utilize the standardized DASMA 20-coil caliper rule: measuring exactly 20 tightly compressed active coils with digital calipers to determine the true wire gauge to the thousandth of an inch.
| DASMA Wire Gauge | 20-Coil Caliper Width | Inside Diameter (ID) | Typical Door Application | Fatigue Rating |
|---|---|---|---|---|
| .207 Wire | 4.14 Inches | 1-3/4" or 2" | Single 8x7 or 9x7 Lightweight Non-Insulated | 10,000 Cycles |
| .218 Wire | 4.36 Inches | 1-3/4" or 2" | Single 9x7 Insulated Steel Door | 15,000 Cycles |
| .225 Wire | 4.50 Inches | 2" Standard | Double 16x7 Lightweight 25-Gauge Pan Door | 15,000 Cycles |
| .234 Wire | 4.68 Inches | 2" Standard | Double 16x7 Medium Insulated Residential | 20,000 Cycles |
| .243 Wire | 4.86 Inches | 2" Standard | Double 16x7 Insulated Double-Sided Steel | 25,000 Cycles |
| .250 Wire | 5.00 Inches | 2" or 2-5/8" | Double 16x7 Heavy Wood Overlay or Carriage | 30,000 Cycles |
| .262 Wire | 5.24 Inches | 2-5/8" Heavy-Duty | Double 16x8 Heavy Wind-Load Hurricane Doors | 35,000 Cycles |
| .273 Wire | 5.46 Inches | 2-5/8" Commercial | 18x8 Commercial & Heavy Architectural Wood | 45,000 Cycles |
The Extreme Hazard of DIY Torsion Spring Winding
CRITICAL SAFETY WARNING: Severe Laceration & Blunt Force Hazard
Garage door torsion springs store enough kinetic energy to break bones, amputate fingers, or cause fatal cranial fractures if improperly handled. Never attempt to adjust winding cones with screwdrivers, punch tools, or vice grips. Professional technicians utilize two dedicated 1/2-inch solid cold-rolled steel winding bars, strictly maintaining quarter-turn control while standing completely outside the rotational trajectory of the cone.
Our 5-Stage Precision Calibration Protocol
When TorsionTech Direct dispatches a mobile service unit to your home, we do not simply swap a broken spring. Our certified master technicians execute a full 5-stage mechanical rebuild of the counterbalance assembly:
- Digital Deadweight Scaling: We disconnect the opener arm and weigh the door panels with a calibrated analog or digital mechanical scale to verify exact door weight under zero tension.
- Dual Spring Conversion & Metallurgy Match: If your door was built with an inferior single-spring configuration, we convert it to a dual-spring torsion system, distributing rotational stress evenly across two independent ASTM A229 oil-tempered coils.
- Center Bearing & End Bushing Inspection: We inspect the stationary center bearing plate. A seized or worn ball bearing causes the torsion tube to bow and whip during rotation, grinding grooves into the shaft and prematurely snapping the new springs.
- Precision Quarter-Turn Winding & Set-Screw Torquing: Using dedicated solid steel winding bars, we wind the exact calculated quarter-turns based on drum radius, torquing square-head set screws to 12-14 ft-lbs into the tubular steel shaft.
- 3-Point Neutral Balance Float Test: We test the door's balance manually at three positions: 3 inches off the floor, waist height (4 feet), and fully open at the header. A properly balanced door floats motionless at waist height without creeping downward or drifting upward.
Transparent Pricing & Warranty Comparison
| Torsion Service Tier | Hardware Specifications | Cycle Lifespan | Upfront Flat Rate | Warranty Protection |
|---|---|---|---|---|
| Standard Torsion Replacement | Single ASTM A229 Oil-Tempered Spring | 10,000 Cycles (~6-8 Years) | $219 | 3-Year Hardware Warranty |
| Dual High-Cycle Conversion | Matched Pair Heavy-Gauge Oil-Tempered Coils | 25,000 Cycles (~15-18 Years) | $319 | 7-Year Hardware & Labor Warranty |
| Commercial Ultra-Torque System | Dual Large-Diameter (2-5/8" ID) High-Carbon Coils | 50,000 Cycles (~25+ Years) | $449 | Lifetime Hardware Warranty |
